Expanding Workshop Table Designs: Plans and 3D Models

Expanding Workshop Table Design Bundle for Four Tool Stations in PDF Plans and 3D Model Formats

$65.39

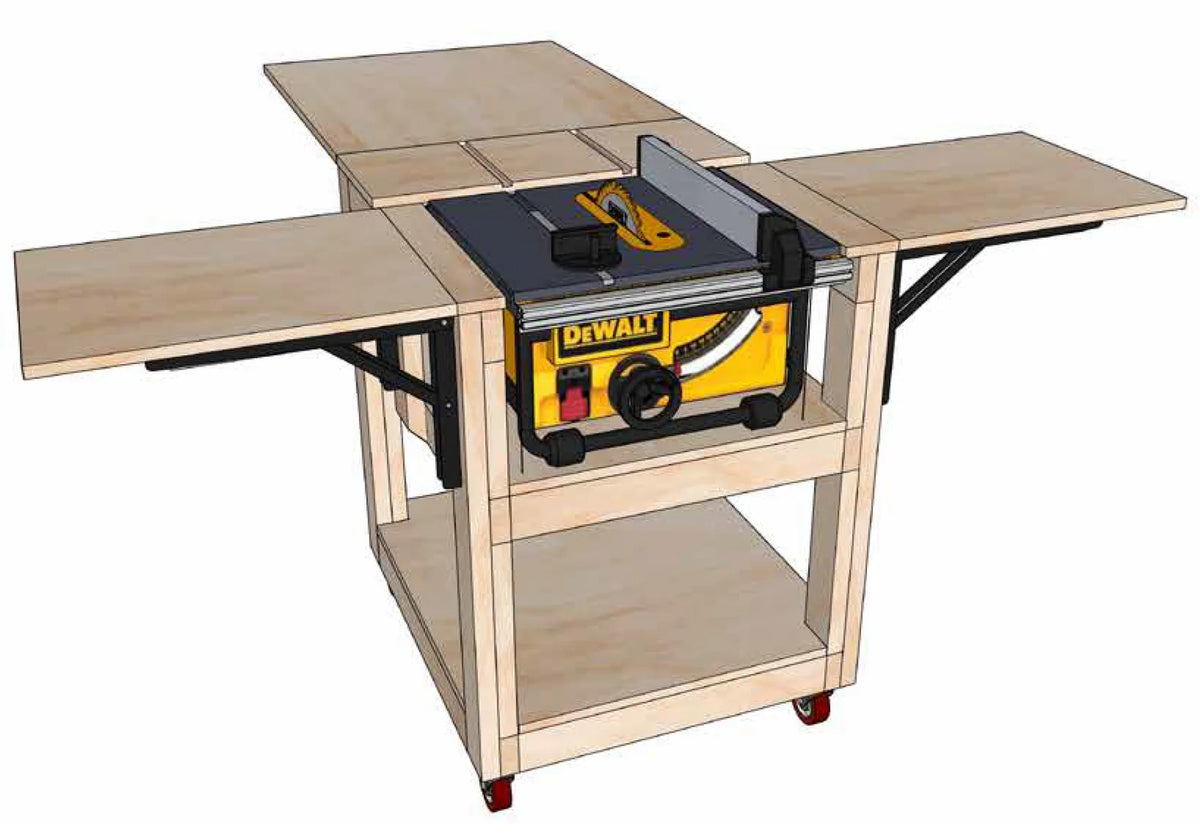

The expanding workshop table design bundle helps you plan four tool stations that fold down for storage and extend when you need more working space. The designs cover a miter saw table, table saw outfeed table, planer infeed and outfeed table, and router table for a compact woodworking shop.

Select Plans for digital PDF build instructions, 3D Models for editable design files, or Plans + 3D Models for both. The plan packages include calculators that adjust the builds to your overall height and board dimensions. The miter saw, table saw and planer designs also accept tool dimensions; the router table design uses a Powertec universal mounting plate.

The PDF plans include color-coded 3D illustrations, cut plans and a material list with hardware links. Dimensions are provided in inches and millimeters. The model package provides Autodesk Fusion, SketchUp and Autodesk Inventor files for modifying the designs.

Features

Four expanding table designs support different woodworking tool stations.
Fold-down designs help preserve workshop space between projects.
Calculators in the plan packages update cut lists, cut plans and 3D models when dimensions change.
PDF plans use color-coded illustrations to help you follow piece placement.
Editable model files let you modify the designs in the supplied software formats.

Specifications

Product format: Digital woodworking design files
Packages: Plans; Plans + 3D Models; 3D Models
Included designs: Miter saw table; table saw outfeed table; planer infeed and outfeed table; router table
Plan package contents: PDF downloads for four builds; automatic calculators; color-coded 3D images and cut plans; material list with hardware links
Plan measurement units: Inches and millimeters
3D model formats: Autodesk Fusion (.f3d); SketchUp (.skp); Autodesk Inventor (.ipt/.iam)

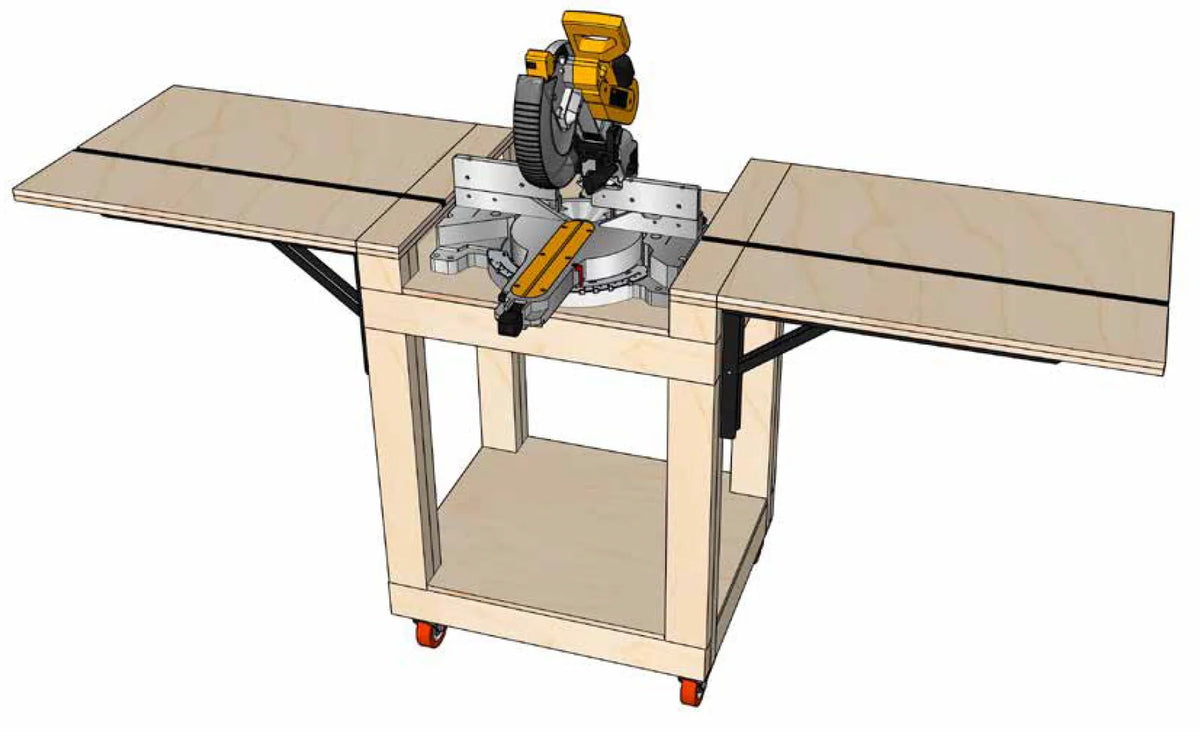

Miter saw table design dimensions: Listed folded size: 28 × 24 inches; expanded length: 89 inches

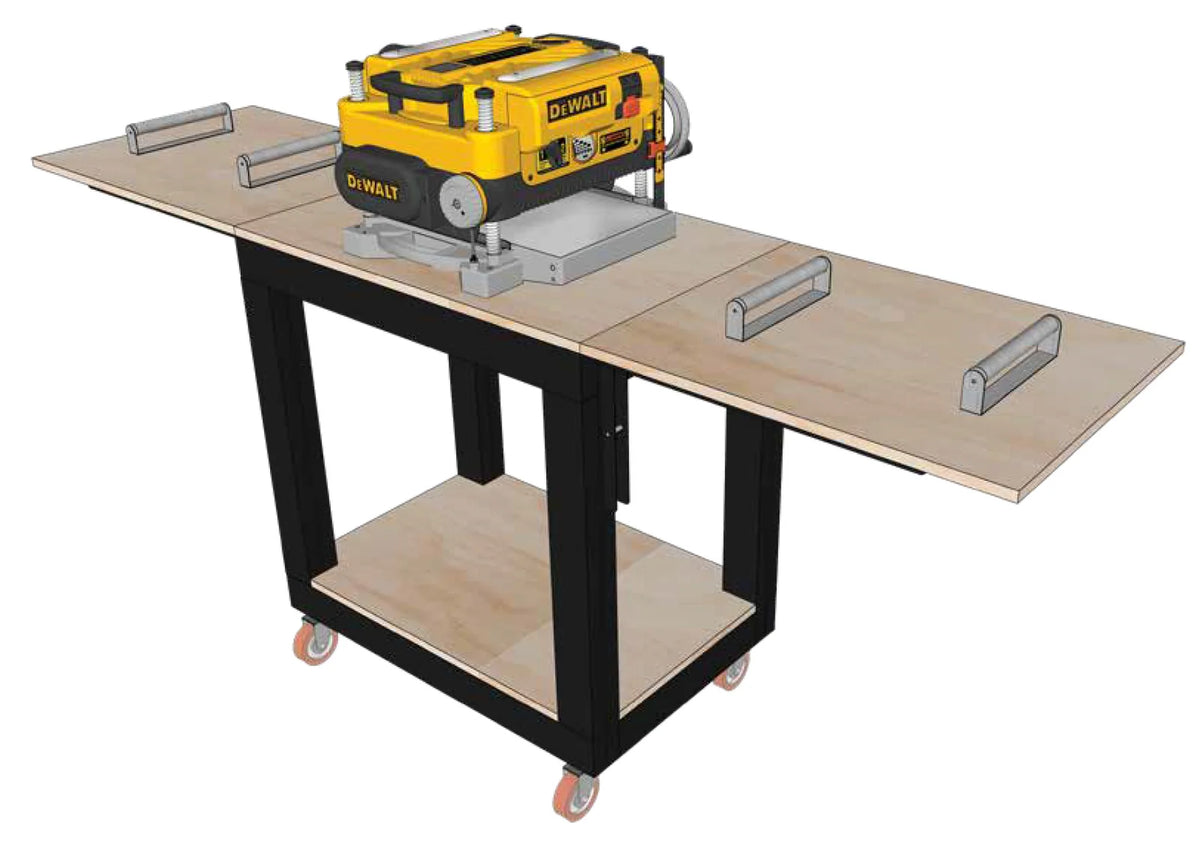

Planer table design dimensions: Listed folded size: 2 × 3 feet; expanded length: 8 feet with 3 feet of infeed and outfeed

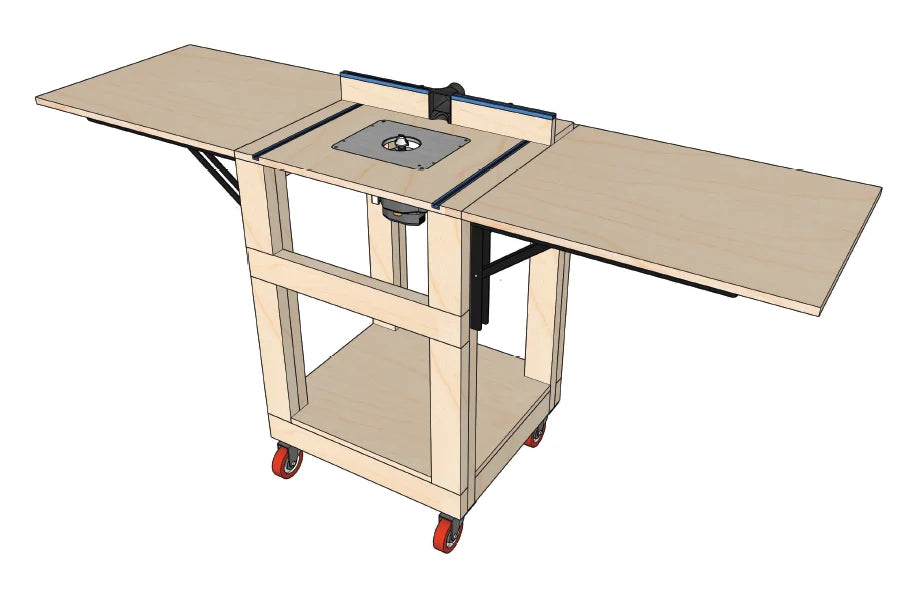

Router table design dimensions: Listed folded size: 29.5 × 24 inches; expanded length: 86 inches
Router table mounting design: Designed around the Powertec universal mounting plate

Frequently Asked Questions

Does this bundle include finished workshop tables?

This bundle provides digital design files for building four workshop tables. Choose PDF plans, editable 3D models, or the combined package.

Which package includes both build instructions and editable designs?

Plans + 3D Models includes both PDF build instructions and editable model files. Choose Plans for the PDF package or 3D Models for model files.

Can I adjust the table plans to my tools and lumber?

Yes, the plan packages include calculators for setting overall height and board dimensions. The miter saw, table saw and planer designs also accept tool dimensions; the router table design is built around a Powertec universal mounting plate.
