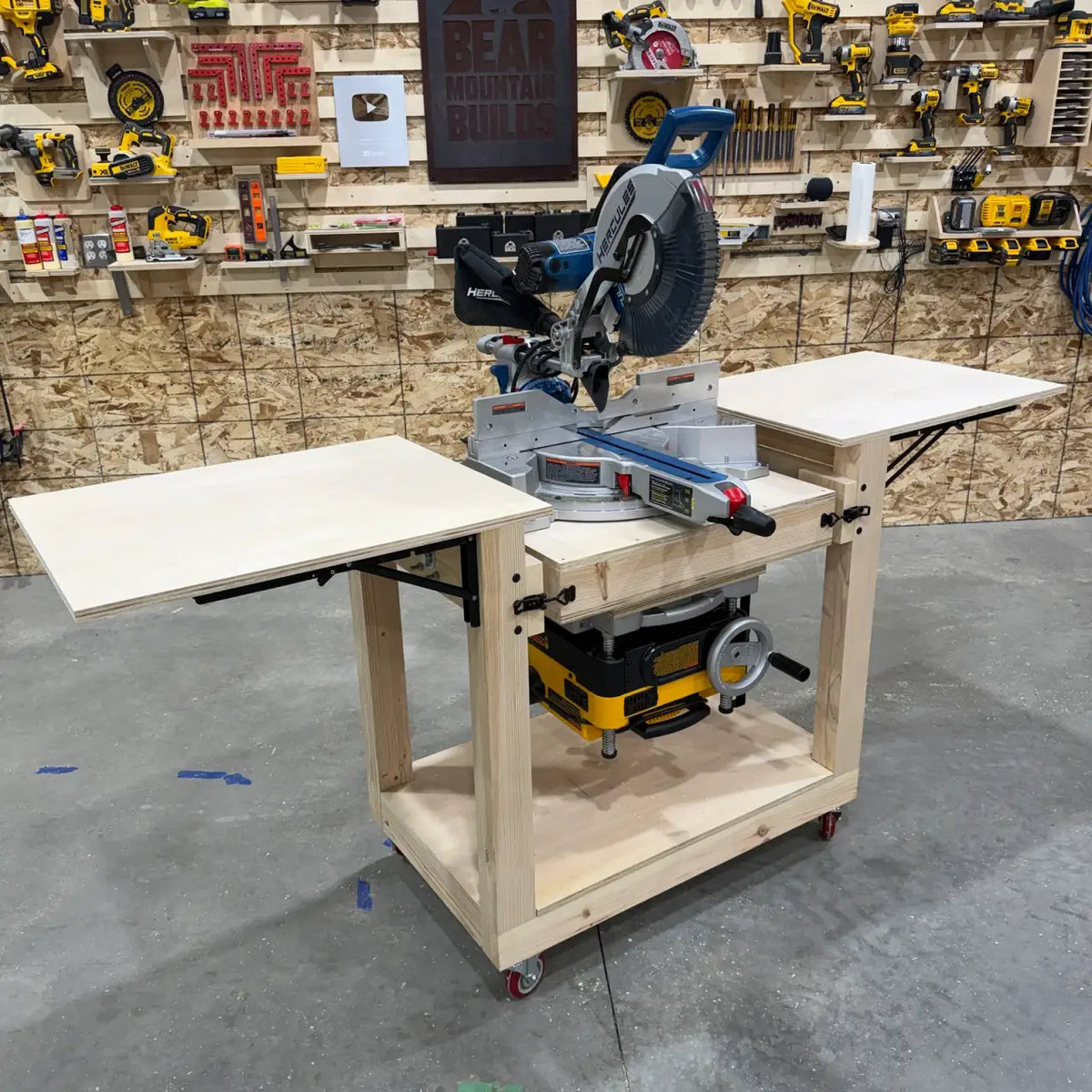

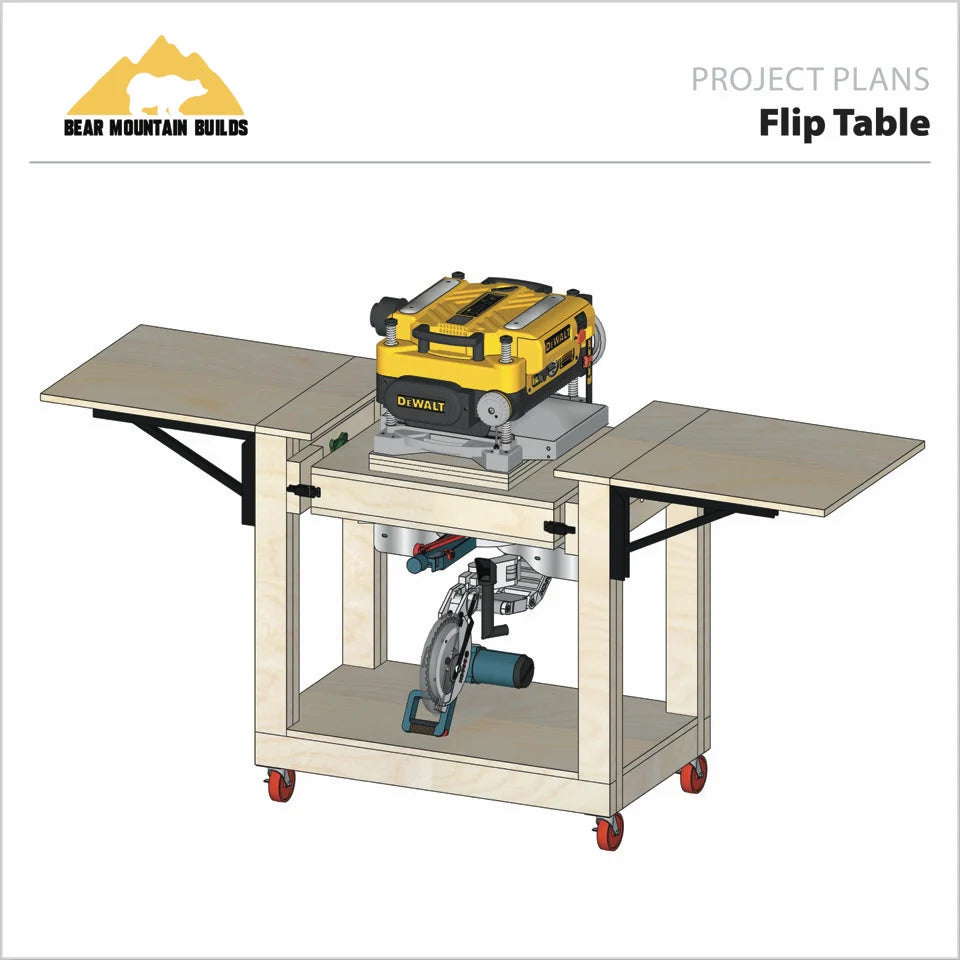

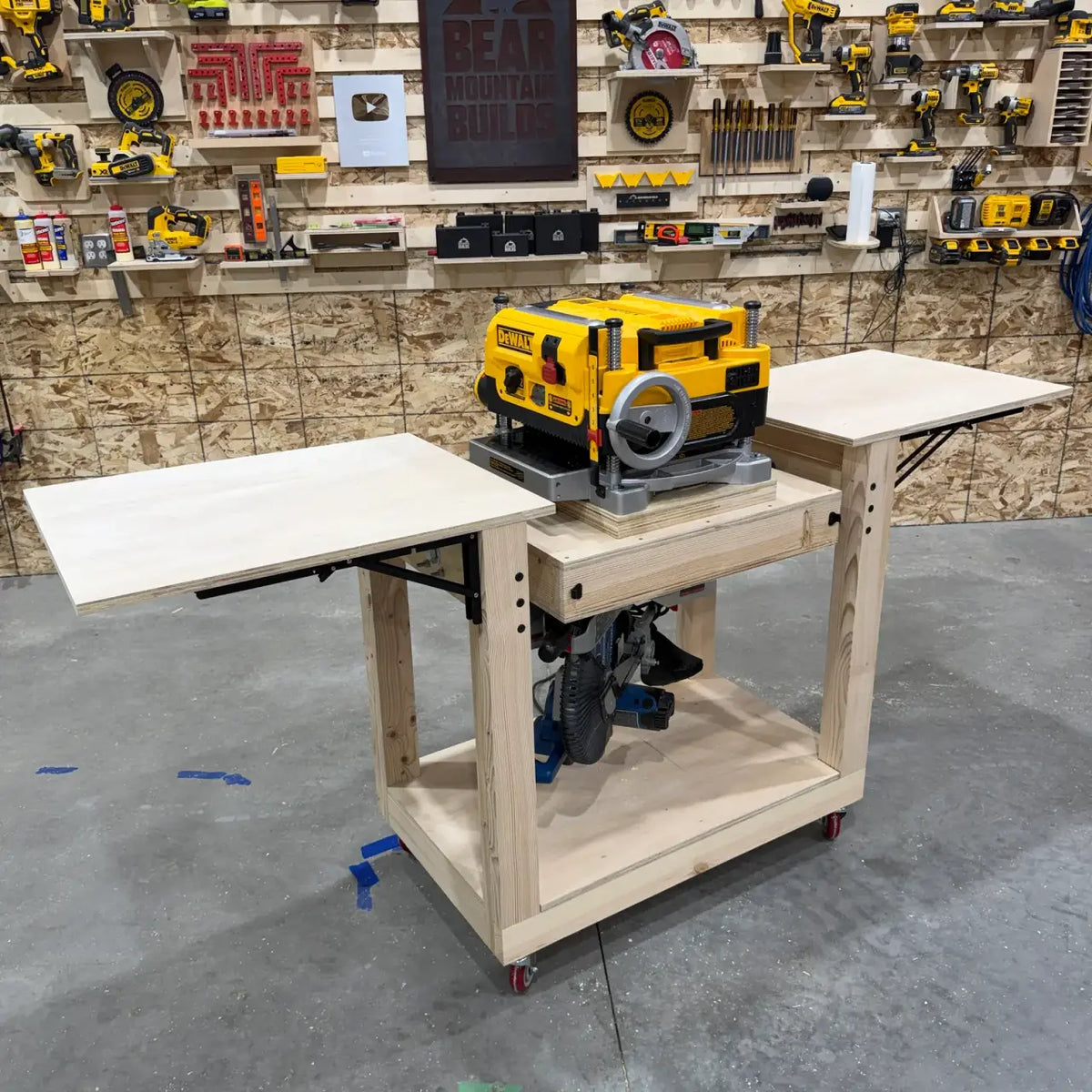

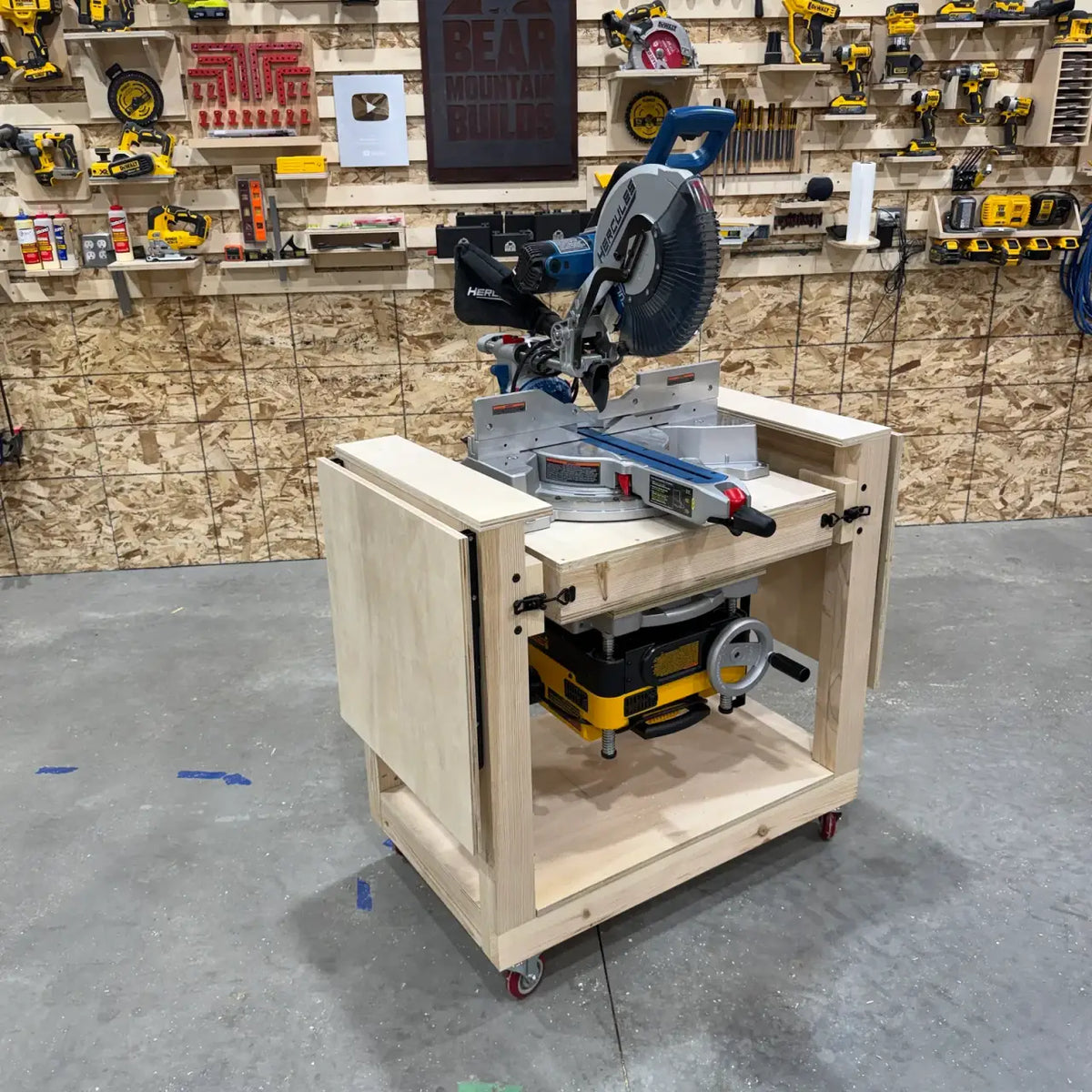

Flip-top tool table digital plans and models help you build a workshop stand that holds two benchtop tools back-to-back on one frame. The rotating design lets you flip and lock the table to switch tools while using a single tool station.

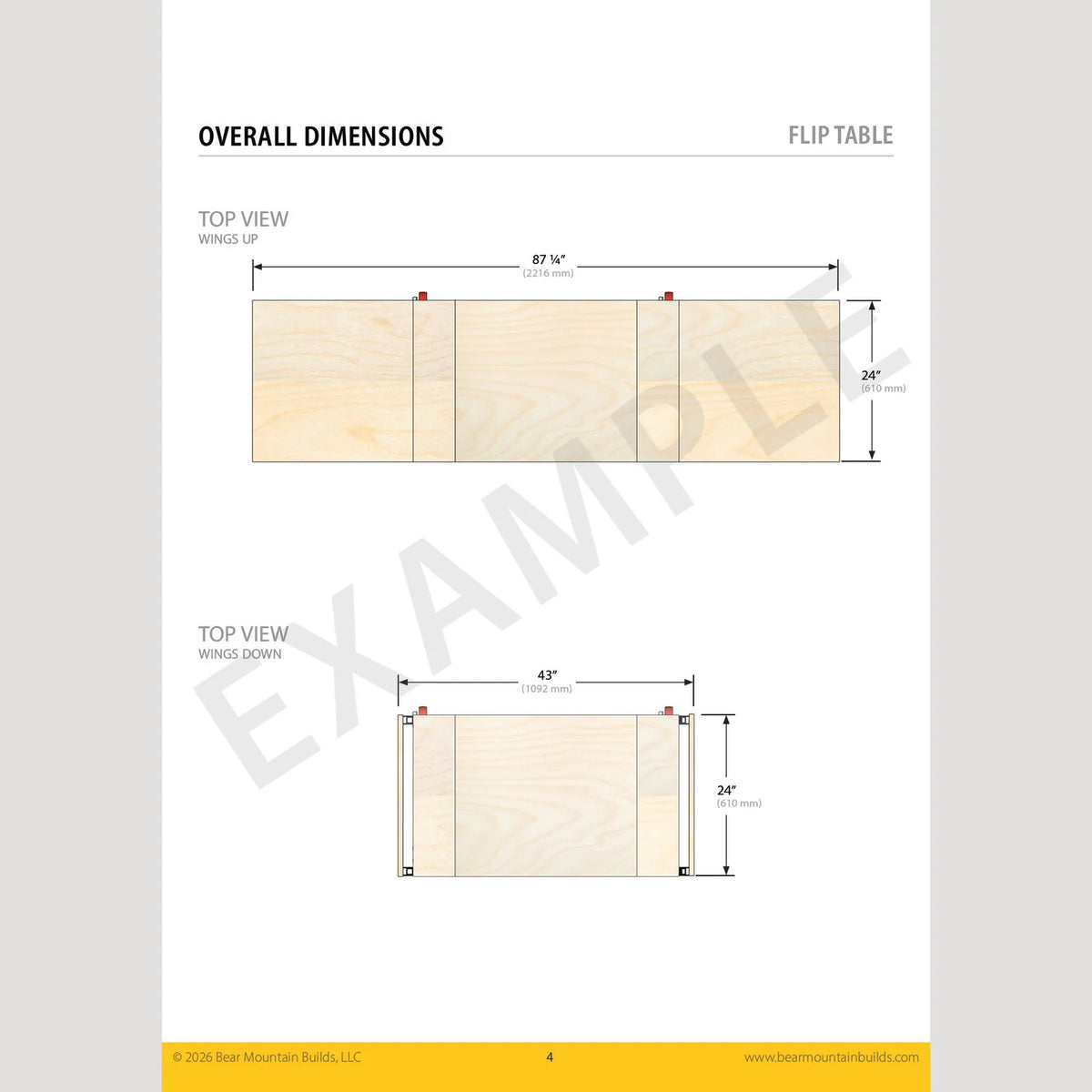

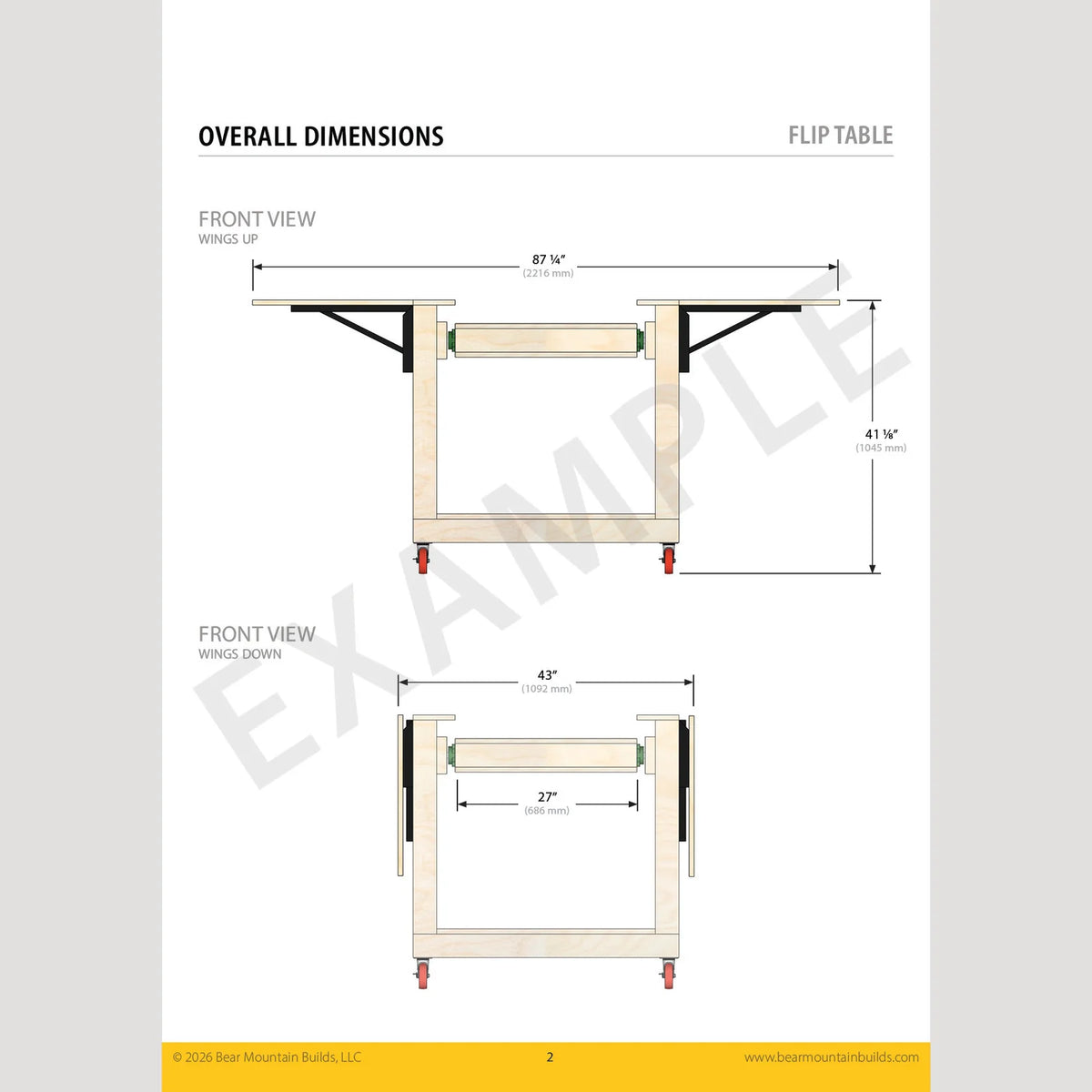

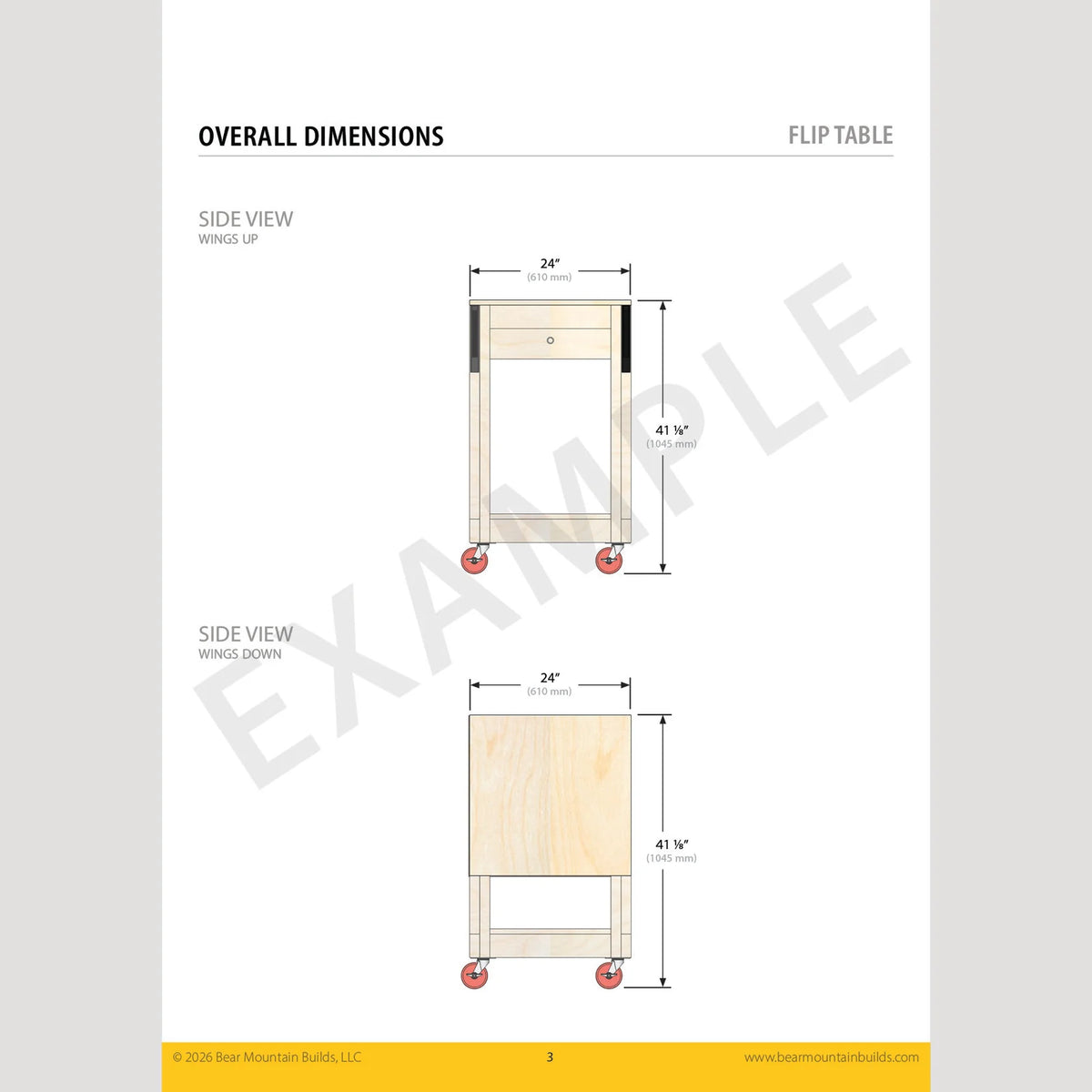

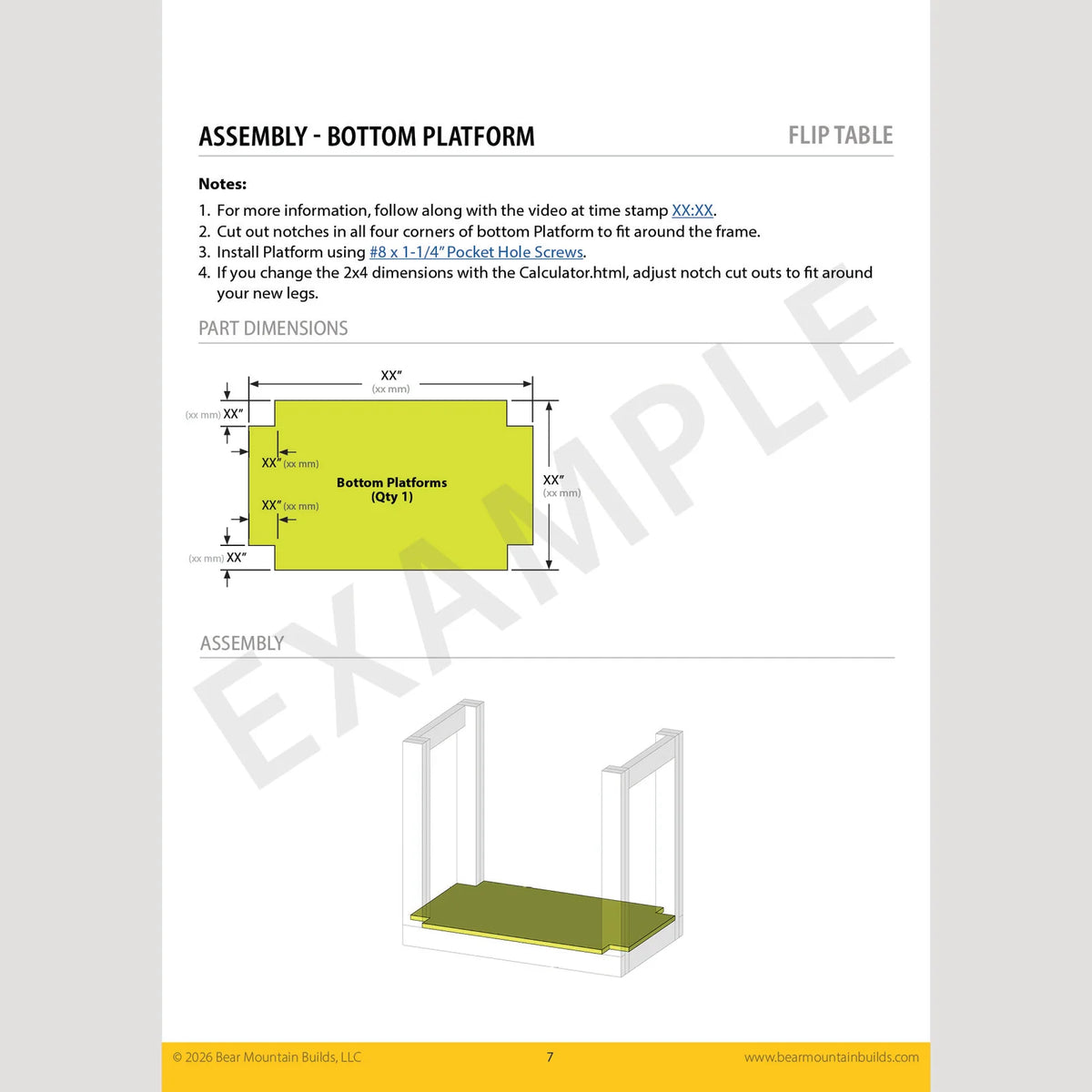

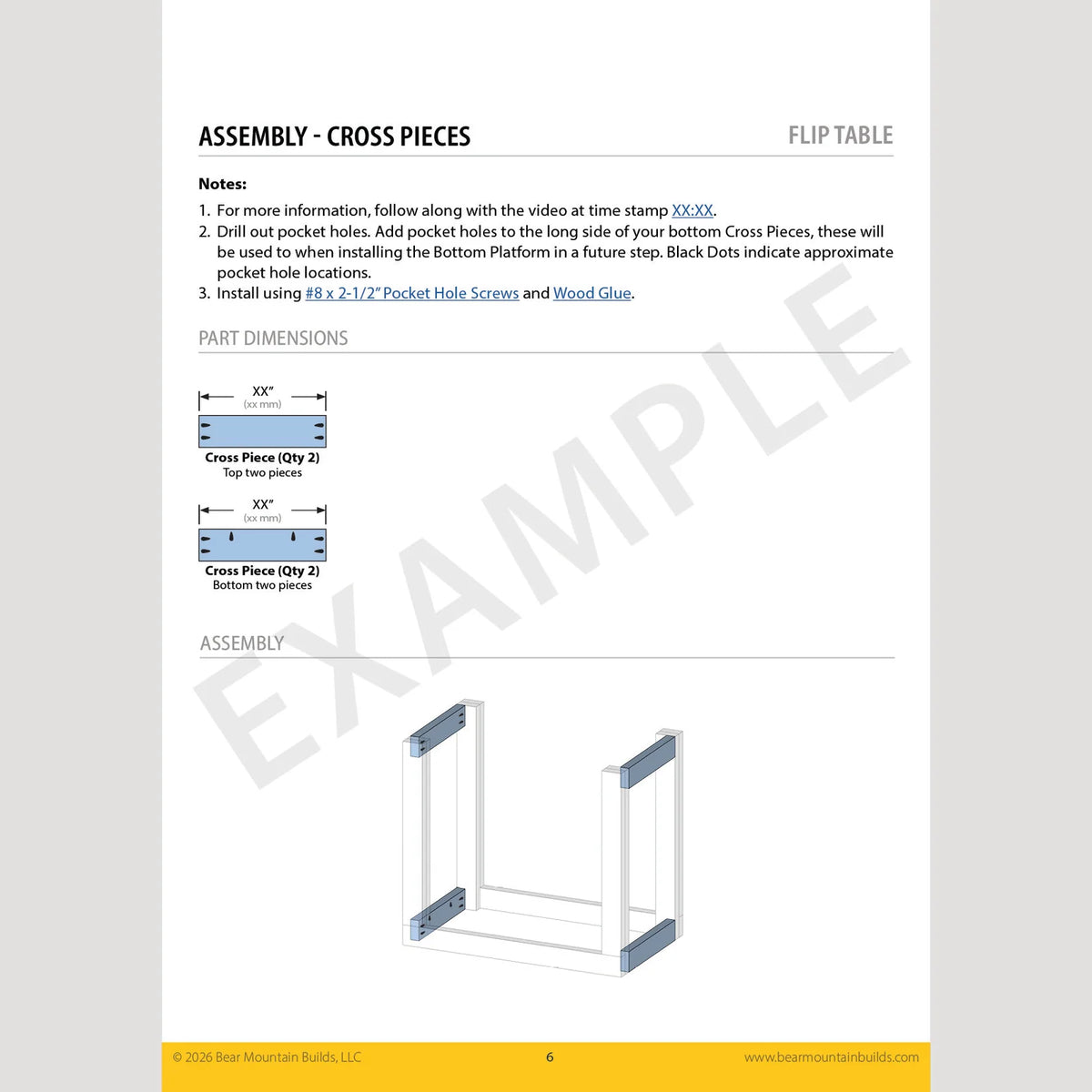

Packages containing Plans include a 32-page PDF and an automatic calculator that adjusts the cut list, cut plan and 3D diagrams to your tool dimensions, preferred table height and board sizes. Color-coded illustrations and a material list with hardware links help you prepare the build.
Select Plans for build instructions, 3D Model for editable design files, or Plans + 3D Model for both. The model files are available in Autodesk Fusion, SketchUp and Autodesk Inventor formats. This is a digital woodworking design product rather than a finished table.
Features
- One flip-top frame accommodates two benchtop tools mounted back-to-back.
- Packages containing plans include a calculator for tool dimensions, overall height and board dimensions.
- The plan calculator updates cut lists, cut plans and 3D diagrams when inputs change.
- Plan packages include color-coded illustrations and cut plans to guide assembly.
- Packages containing a 3D model provide design files for making modifications.
Specifications
- Product format: Digital woodworking plans and 3D model files
- Packages: Plans; Plans + 3D Model; 3D Model
- PDF length: 32 pages in packages containing Plans
- Design materials: 2x4s, 2x6s and 3/4-inch plywood
- Plan measurement units: Inches and millimeters
- Plan calculator inputs: Dimensions of both tools, overall table height and board dimensions
- Model file formats: Autodesk Fusion (.f3d), SketchUp (.skp), Autodesk Inventor (.ipt/.iam)

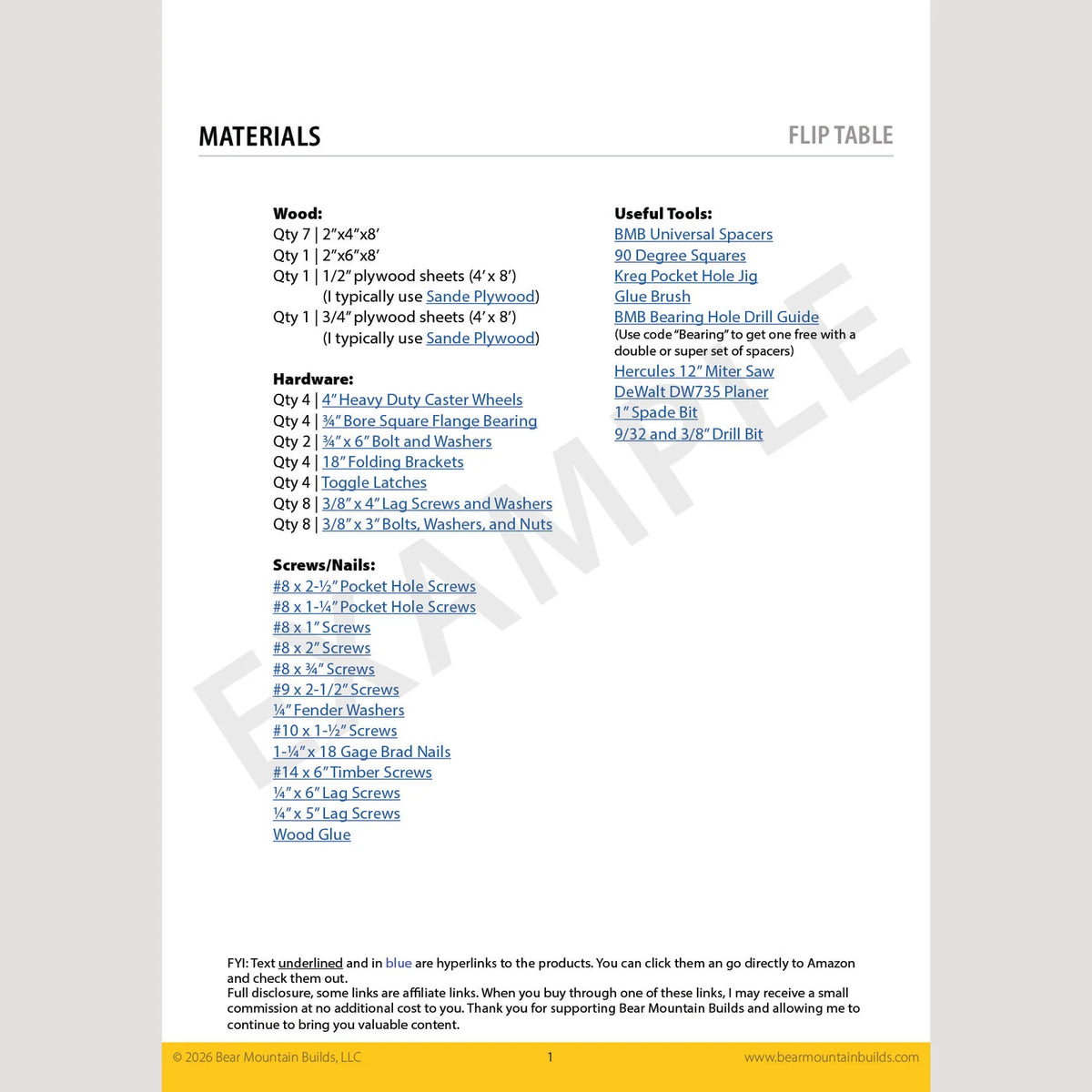

- Plan resources: Color-coded 3D illustrations, cut plans and a material list with hardware links
Frequently Asked Questions
Does this purchase include a finished flip-top table?
This flip-top tool table product supplies digital plans, 3D model files or both. You build the physical table using the design; a finished table is not included.
Which package includes the PDF instructions and calculator?
The Plans and Plans + 3D Model packages include the 32-page PDF and automatic calculator. Choose the 3D Model package when you only need the model files.
Can I adapt the table plans to my tools and workbench height?

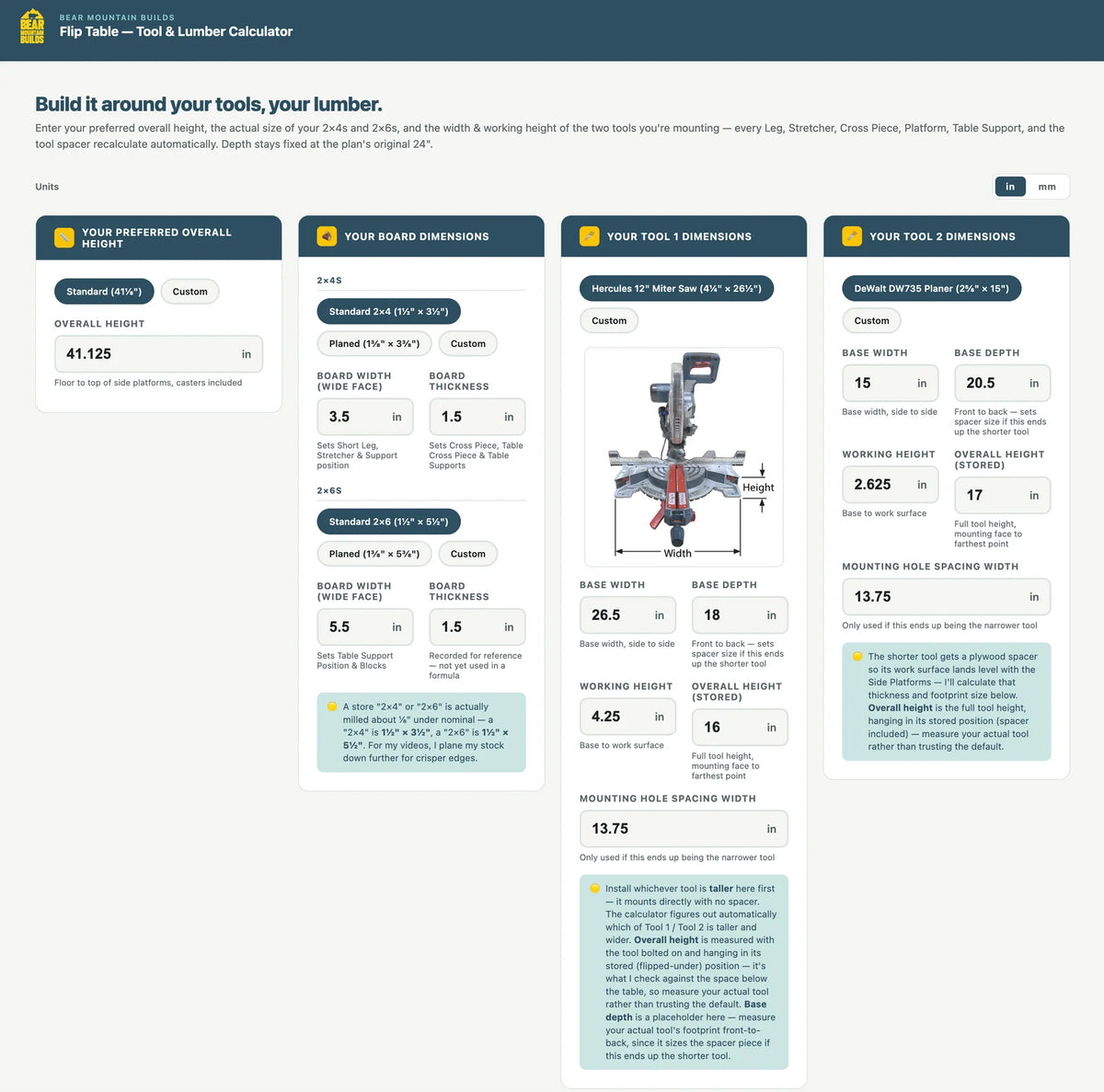

Yes. The calculator included with the flip-top table plans accepts dimensions for both tools, your preferred overall height and your board sizes, then updates the cut list, cut plan and 3D diagrams.
What materials does the flip-top table design use?
The flip-top table design uses 2x4s, 2x6s and 3/4-inch plywood. The plan calculator accepts standard, milled or metric board dimensions.
Which file formats are available for editing the 3D model?
The flip-top table model is available in Autodesk Fusion (.f3d), SketchUp (.skp) and Autodesk Inventor (.ipt/.iam) formats. Select 3D Model or Plans + 3D Model for the model files.
