Mini Split Condenser Floor Stand Bracket with Adjustable Heights, Vibration Absorbers and 350–450 lb Capacity

$132.72

Pioneer Mini Split Condenser Floor Stand Bracket

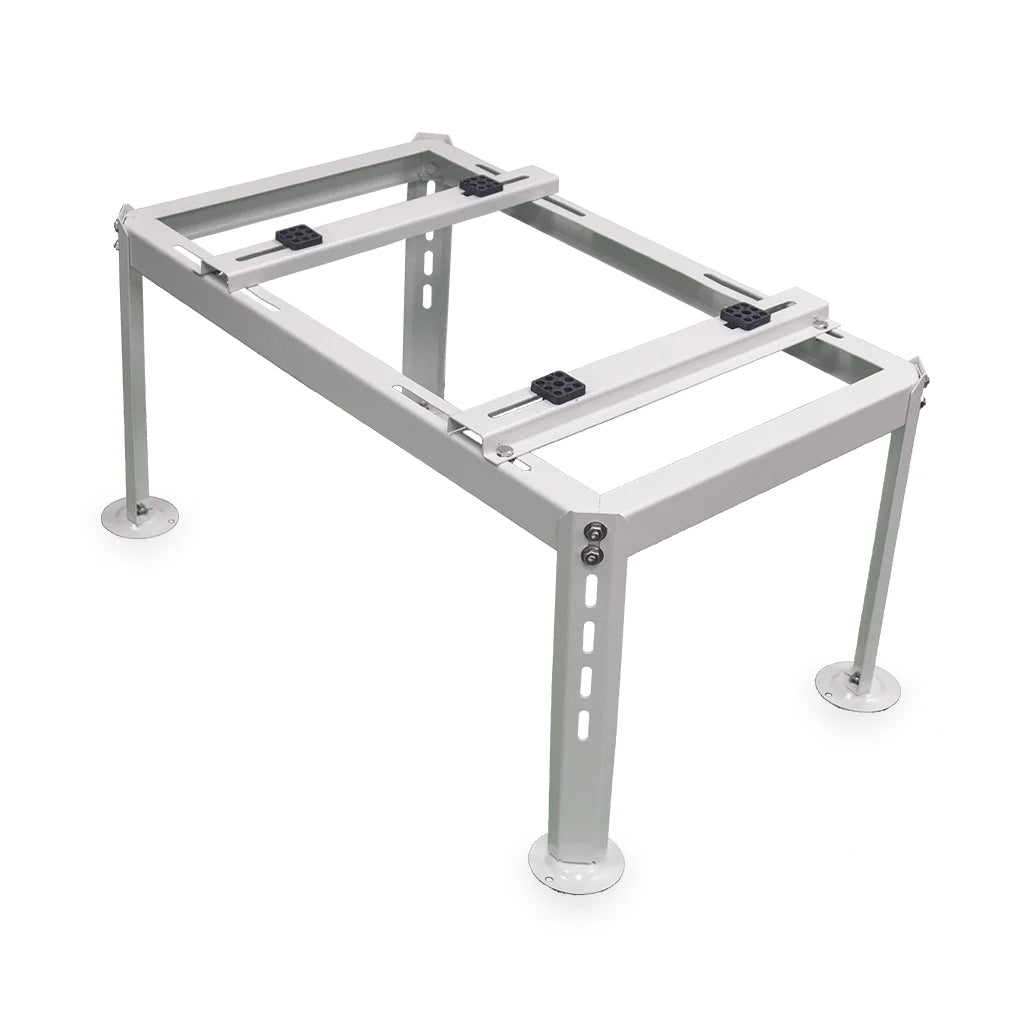

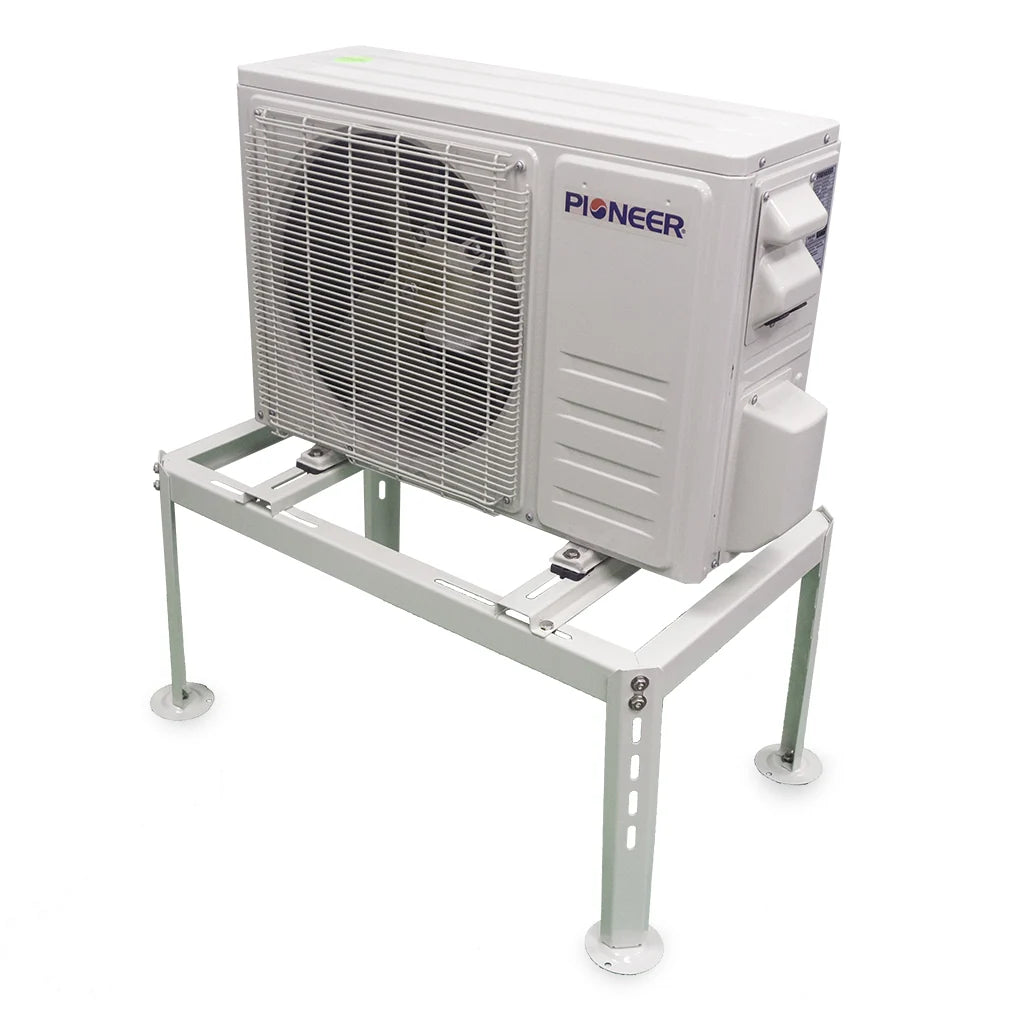

This mini split condenser floor stand bracket elevates an outdoor condenser above the ground when wall mounting is not desirable or feasible. Its adjustable height positions help place the unit up to 18 inches higher, while the included rubber vibration absorbers support the condenser mounting points.

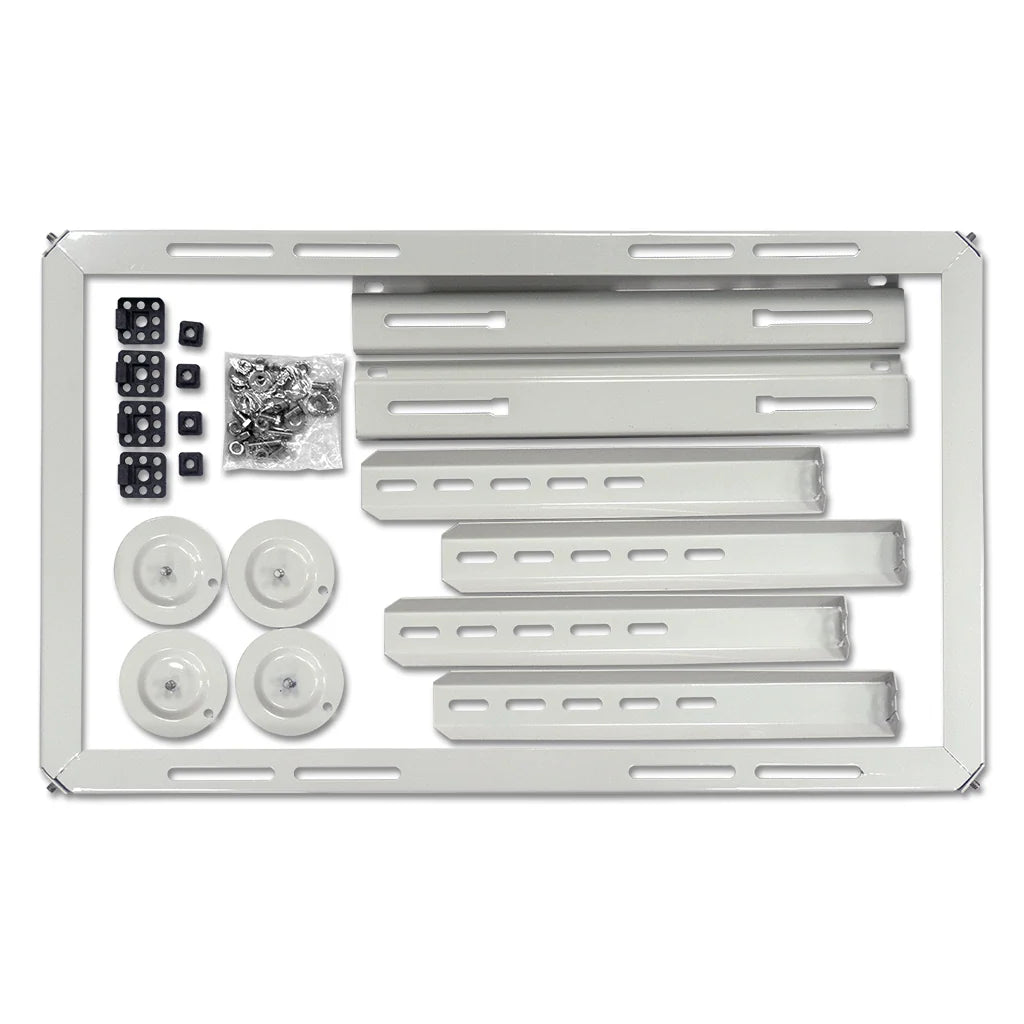

The bracket set uses slotted plate-shaped feet for fastening to a pad or slab. Select the size range that matches your condenser: the 9000–24000 BTU variant is rated for 350 lb, and the 30000–60000 BTU variant is rated for 450 lb.

Assembly requires a 14 mm wrench; verify the condenser mounting-foot width against the dimensions below before installation.

Features

Five adjustable height levels with independent slots
Rubber vibration absorbers for the condenser unit
Slotted plate-shaped feet for mounting to a pad or slab
White powder-coated surface described as weather and snow proof
Elevates the system up to 18 inches above ground

Specifications

Product type: Floor stand bracket for mini split condenser units
Material and finish: Hot galvanized bracket set, 2.2 mm thickness; white powder-coated surface
Hardware: Stainless Steel SS201 standard hardware
9000–24000 BTU variant: 350 lb loading weight; assembled dimensions 31-1/2 x 18-7/8 x 15-3/4 in; compatible with mounting feet up to 27-1/2 in wide
30000–60000 BTU variant: 450 lb loading weight; assembled dimensions 31-1/2 x 23-5/8 x 15-3/4 in; compatible with mounting feet up to 29 in wide
Assembly tool: 14 mm wrench required
Options: 9000 BTU - 24000 BTU; 30000 BTU - 60000 BTU
